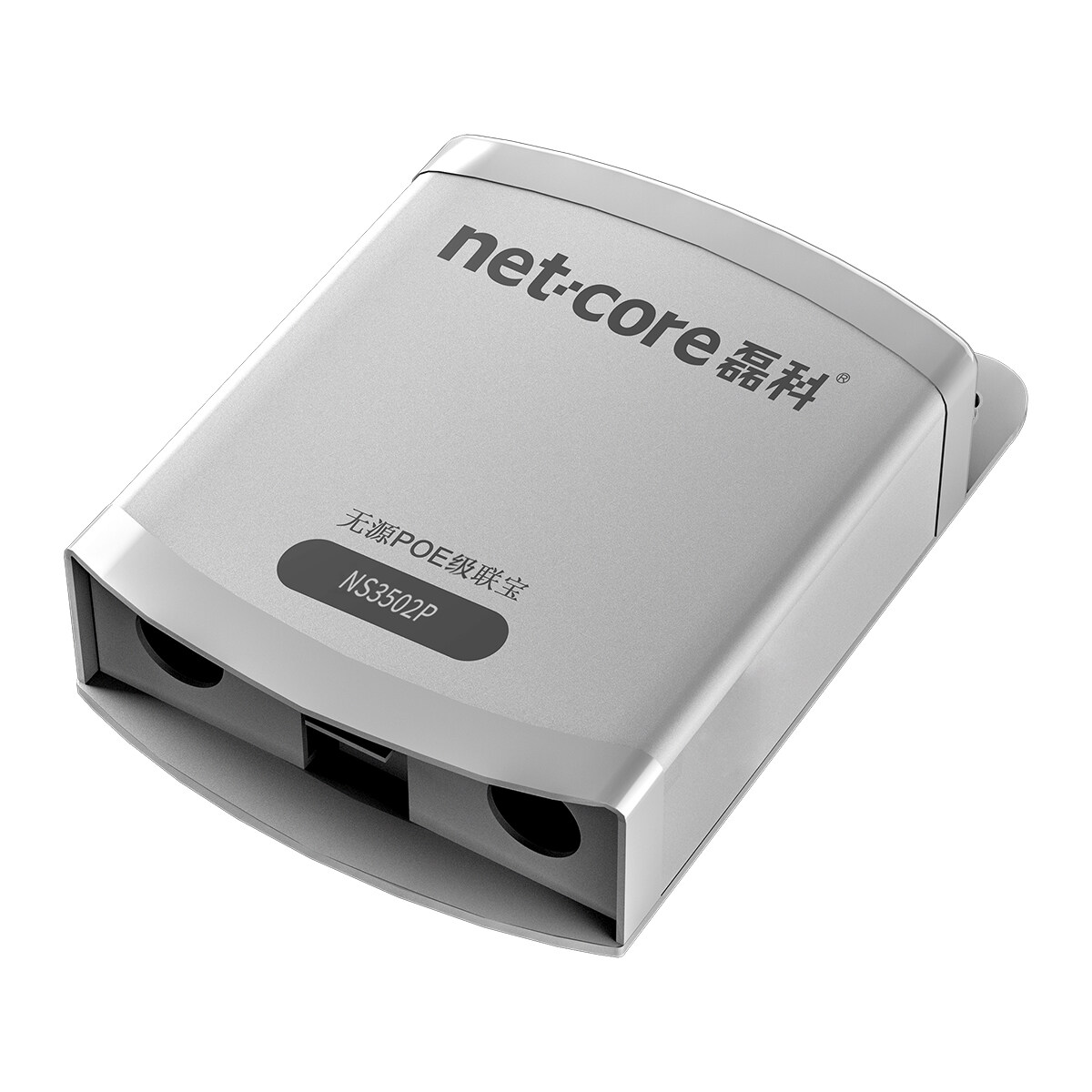

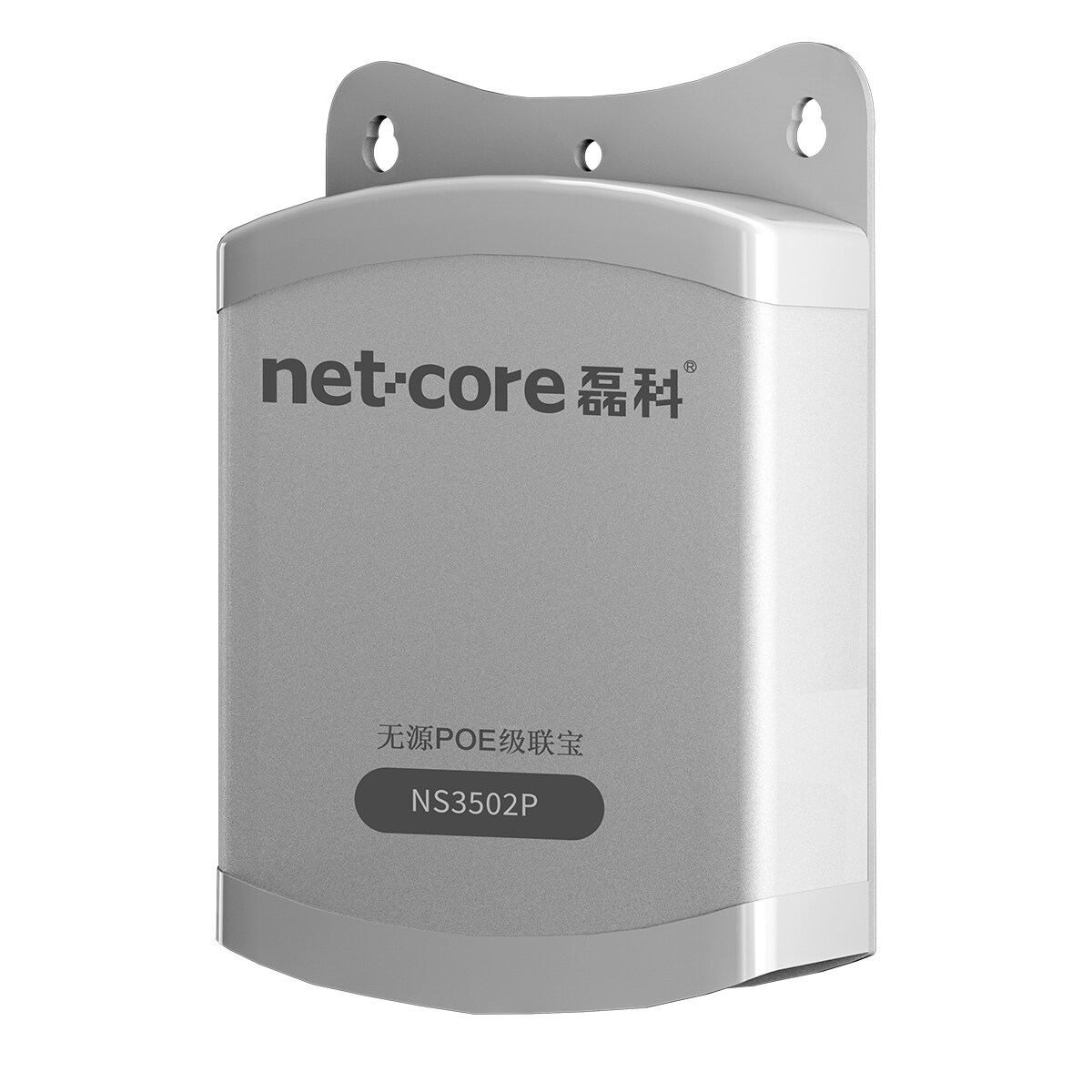

The One-input-two-output Passive Cascading POE Extender, 350-meter surveillance network setup soultion; IP66-rated Outdoor Waterproof And Dust-proof; Dual-mode Switching with Just One-click; Compatible with National Standard PoE Switch.
| Model | NS3502P |
| Port |
1*10/100Mbps RJ45 Port（POE input） 2*10/100Mbps RJ45 Port（POE output） |
| Standards and protocols |
IEEE802.3 Ethernet Media Access Control Protocol IEEE802.3i 10BASE-T Ethernet IEEE802.3u 100BASE-TX Fast Ethernet IEEE802.3x flow control |
| Switch content | 0.6G |
| MAC address table | 2K |
| Power input |
Support standard POE (12/36 or 45/78) IEEE802.3af/at Theoretical value 30W max |
|
Network medium |
10BASE-T: 2 Cat3 or above UTP/STP (≤100m) 100BASE-T: 2 Cat5 or above UTP/STP (≤100m) 1000BASE-T: 2 Cat6 or above UTP/STP (≤250m) |
|
Basic functions |
Follow IEEE802.3 Ethernet and IEEE802.3u Fast Ethernet protocol standards AI automatically detects and judges the strength of the signal, and turns on the ultra-distance transmission mode Store and forward MAC automatic learning and aging IEEE802.3X full-duplex flow control and Backpressure half-duplex flow control |
|
Operating environment |
Operating temperature: 0°C ~ 40°C Storage temperature: -40°C ~ 70°C Operating humidity: 10% ~ 90%, non-condensing Storage humidity: 5% ~ 90%, non-condensing |
| Weight | 157g（not include packaging） |
| Bare machine Size |
98mm*151mm*36mm |
| Packing Size |
100mm*154mm*36mm |
