-Follow IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3x Ethernet protocol standards
-16x10/100Mbps adaptive ports, to meet multi-scenario use
-Each port supports full-/half-duplex working mode
-Adapt to desktop and rack weak current boxes, unrestricted deployment
-Automatic address learning and aging, 8K MAC address table
-8-core metal shielded port, stable transmission without packet loss

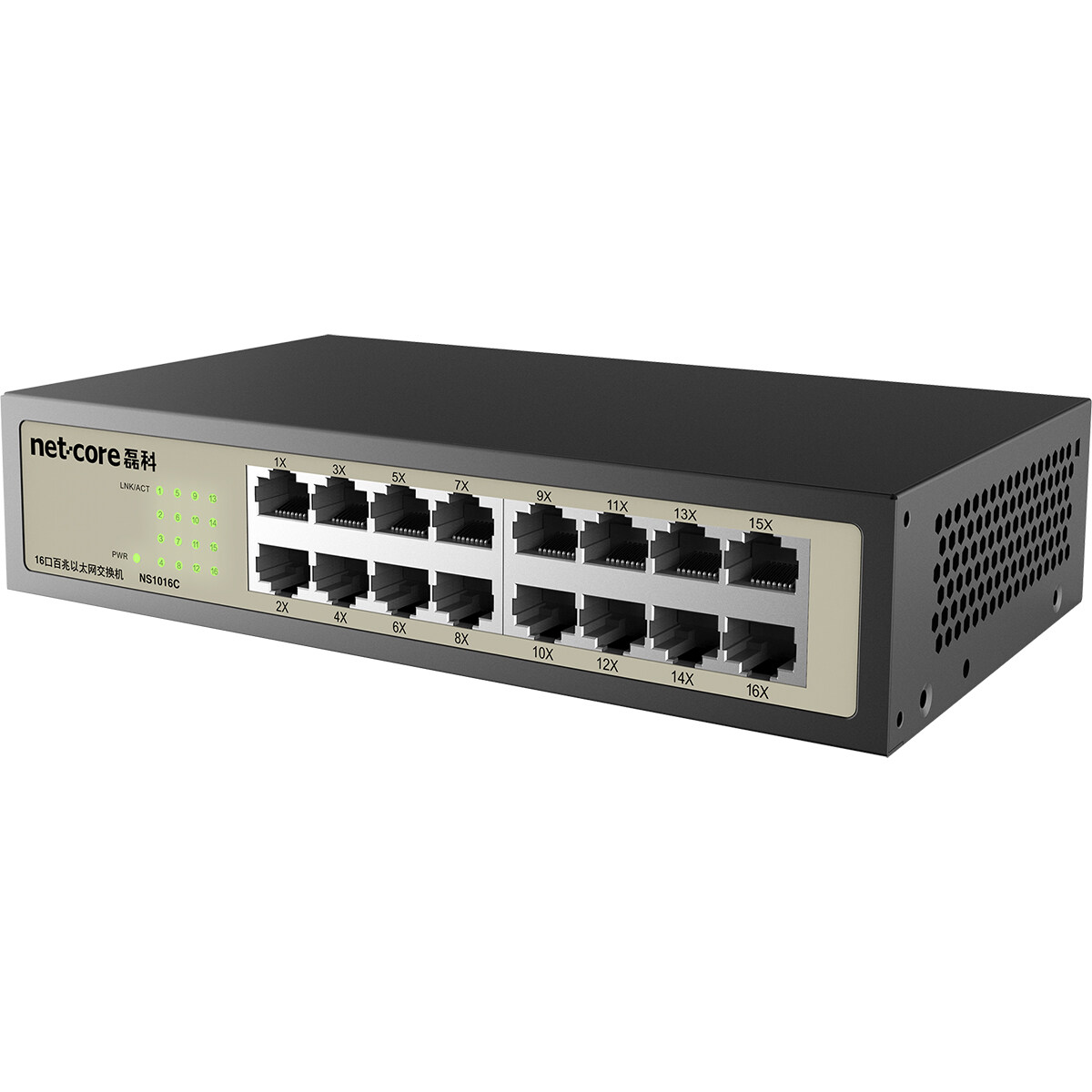

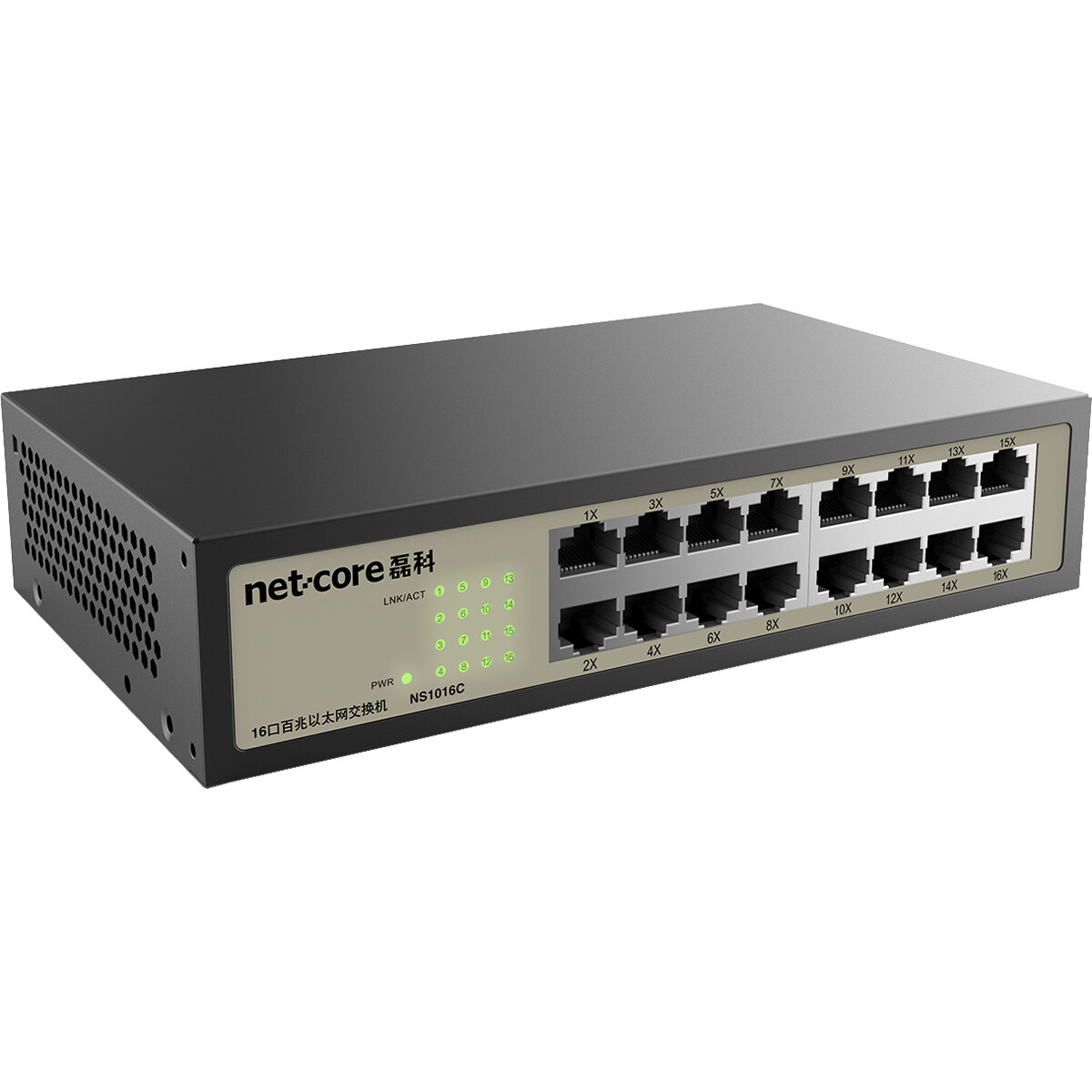

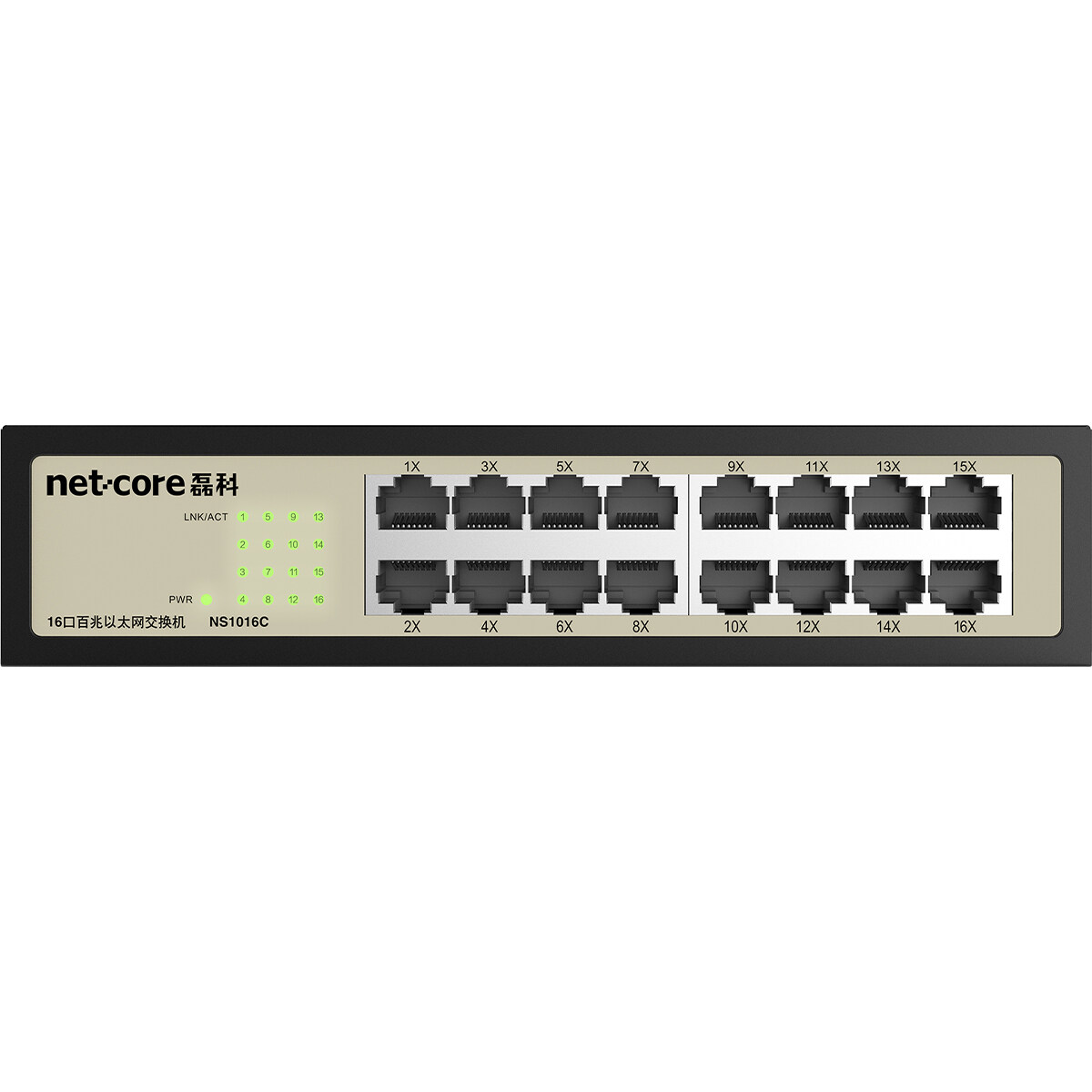

| Product model | NS1016C |
| Standard protocol | IEEE802.3,IEEE802.3u,IEEE802.3z,IEEE802.3x |
| Port |
16*10/100M RJ45 LAN Port |
| Forwarding rate | 10/100Mbps |
| Store and forward | Support |
| Backplane bandwidth | 3.2G |
| MAC address table | 8K |
| Size | 200mm（L）×118mm（W）×44mm（H） |
| LED display | PWR、16LAN LINK |
| Working environment |
Operating temperature: 0°C ~ 40°C Storage temperature: -40°C ~ 70°C Operating humidity: 10% ~ 90%, RH non-condensing Storage humidity: 5% ~ 90%, RH non-condensing |
| Power | 9V/500mA |
| Weight | 560g |
